Our Equipment

The Best Equipment In The Industry

Glass Planet is dedicated to providing our customers with the best quality products and services possible. We use state-of-the-art equipment for both residential and commercial applications. Our skilled technicians have extensive experience working with all types of glass, and are committed to providing each customer with individualized attention and care. In addition, we offer a wide range of glass products, from custom shower enclosures to energy-efficient windows. Glass Planet is your one-stop shop for all your glass needs.

Faster Turn-Over

Higher Quality

Stronger Glass

Double-Glazed

Curved Equipment

For modern, contemporary architecture that utilizes curved glass designs, Glass Planet Curved Glass is the perfect choice. Our production processes allow us to craft curved glasses of the highest quality with top-notch safety features.

Forel Vertical CNC Machine

The Forel vertical drill and milling machine is the ultimate resource for precision glass processing. Featuring two independent and opposing operating heads, it is designed to provide exceptional stability while drilling and milling through even the toughest glass panes. This superior machine comes equipped with a patented 6 + 8 tool change system, providing unmatched accuracy as you work

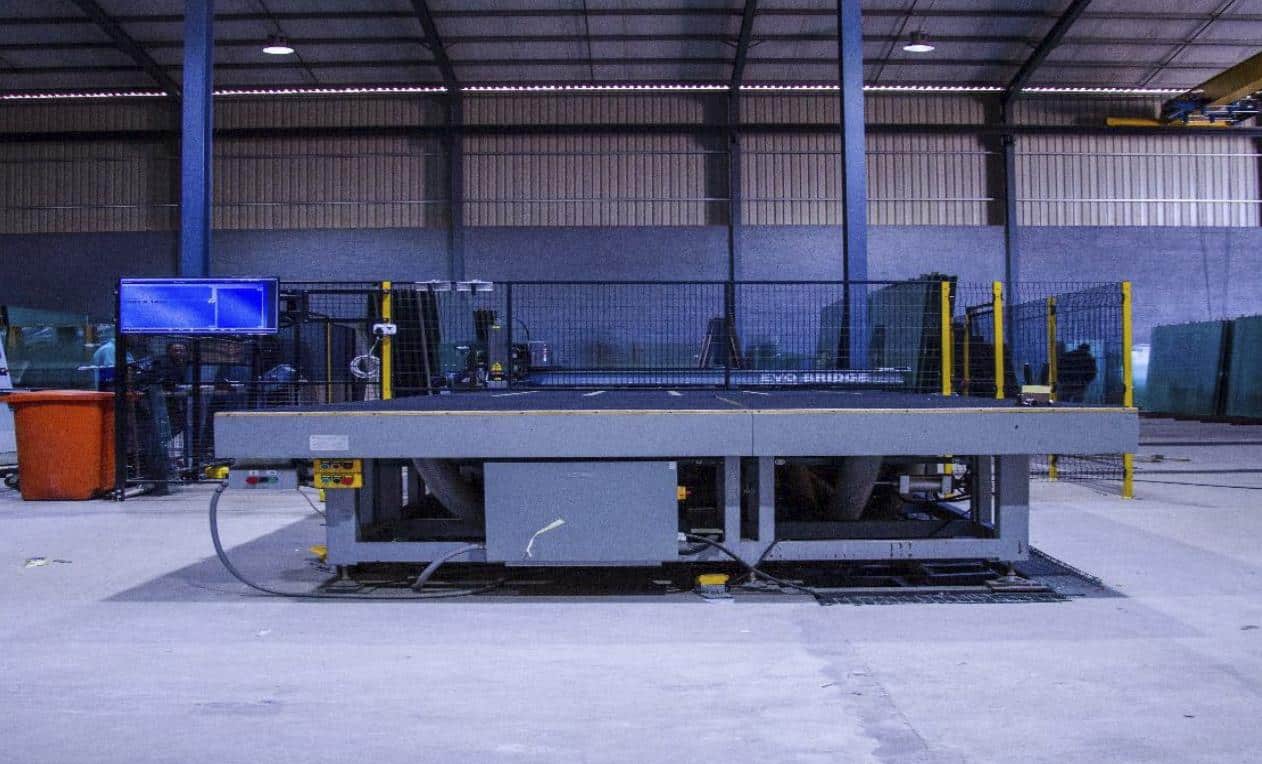

Bottero Float Cutting Line

Our Bottero float cutting line is fully automatic and equipped with a 6 station automatic glass loader with a low-e edge deletion wheel and laser marking. We can cut large panels of glass with high accuracy and incredible speed.

– Low-e Edge Deletion Function. Will edge delete any soft or hard coated low-e glass for the preparation of sealed insulated glass units (SIGU.)

– Shape Glass Cutting. The machine can cut any shape for example tabletops, diameters and oval shapes for the furniture industry.

– Hole Position Scoring. This function will mark hole diameters and cut out dimensions with the carbide cutting wheel. The wheel can score hole diameters as small as 6mm in diameter. This function will speed up the drilling process as the operator does not have to mark out hole positions manually. It will also eliminate errors that could occur through processes.

– Logo and Reference Laser marking. This function will laser mark a company logo or window reference on the pane of glass for your larger projects that will assist the glazier to allocate the correct panel to a window frame on site or at the factory. A window number can now be permanently marked and eliminate labeling errors that may occur from time to time.

Intermac Float Cutting Line

The Intermac is our second Float Glass Cutting Machine and is mostly used for the cutting of oversized sheets of float glass. The cutting table can cut a maximum size of 6000mm X 3000mm with high accuracy and speed.

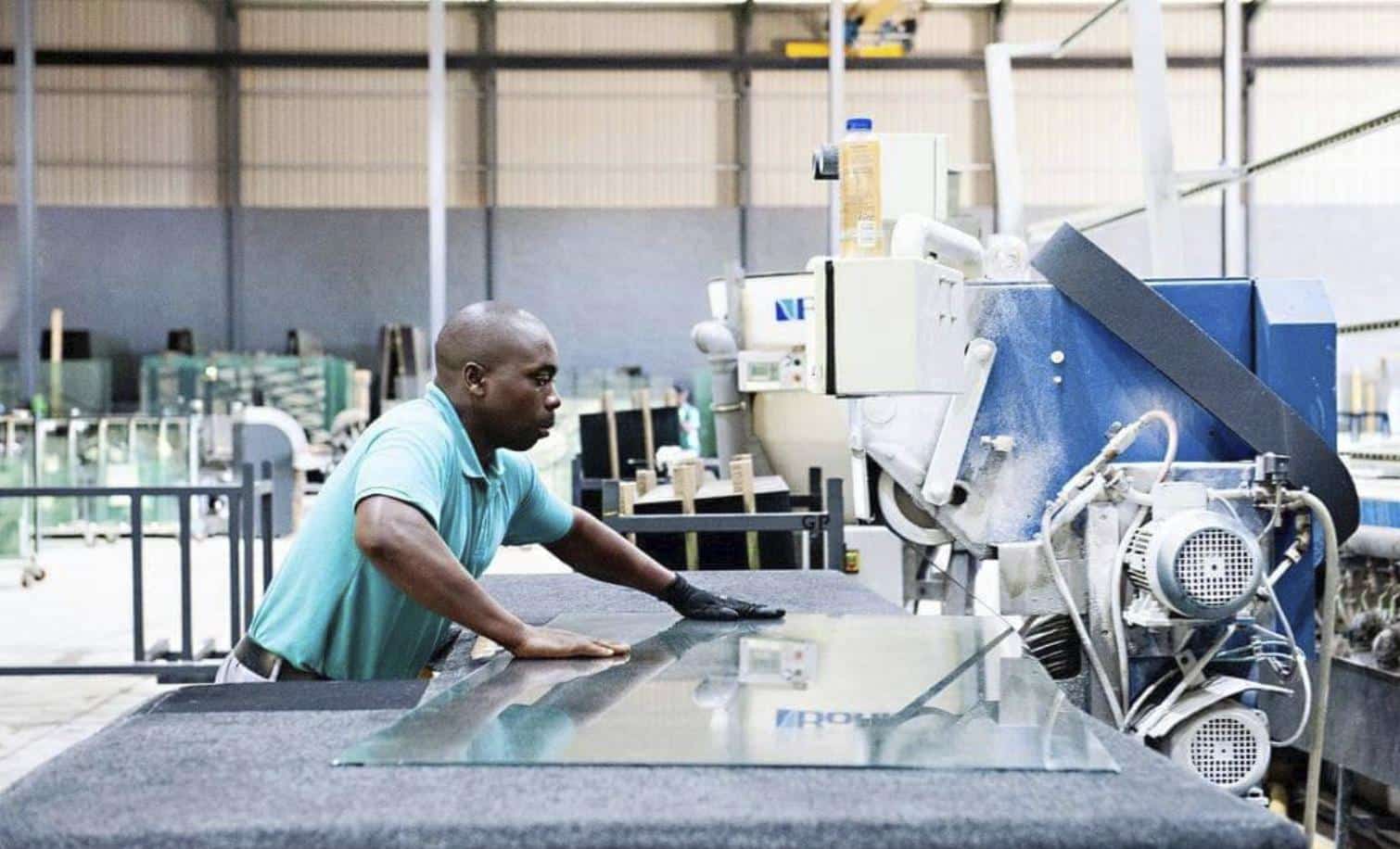

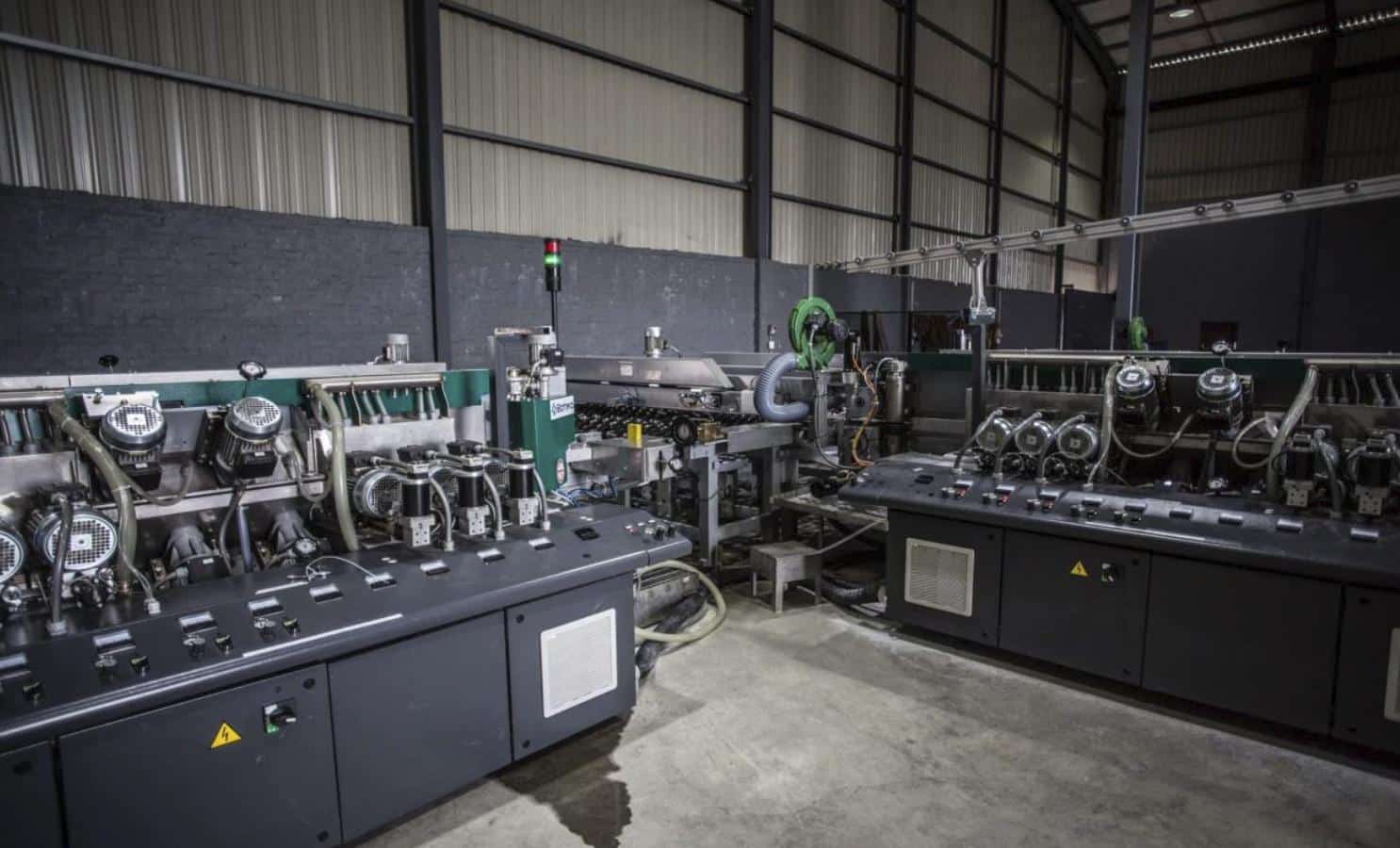

Neptun Rock 11 Straight Line Edgers

These Italian manufactured straight-line edgers are made for high volume polishing of straight edges with a high-quality bright polish finish.

– Minimum Polish height 50mm

– Maximum Polishing weight 250kg

– 3mm – 40mm Glass Thickness

– Chamfer width of 10mm

– Extra Large Racks to support large sheets of glass

Bottero Double Edger Polishing Machine

The Bottero double edger can bright polish high volumes of repeat panel sizes with high accuracy. The polishing machine polishes 2 edges simultaneously as it is equipped with 12 spindles per side. The machine will then polish the other edges and transfer directly onto the horizontal washing station.

– Minimum Polishing Size 300mm X 230mm

– Maximum Polishing Size 6000mm X 2600mm

– Extremely High Accuracy on size polishing

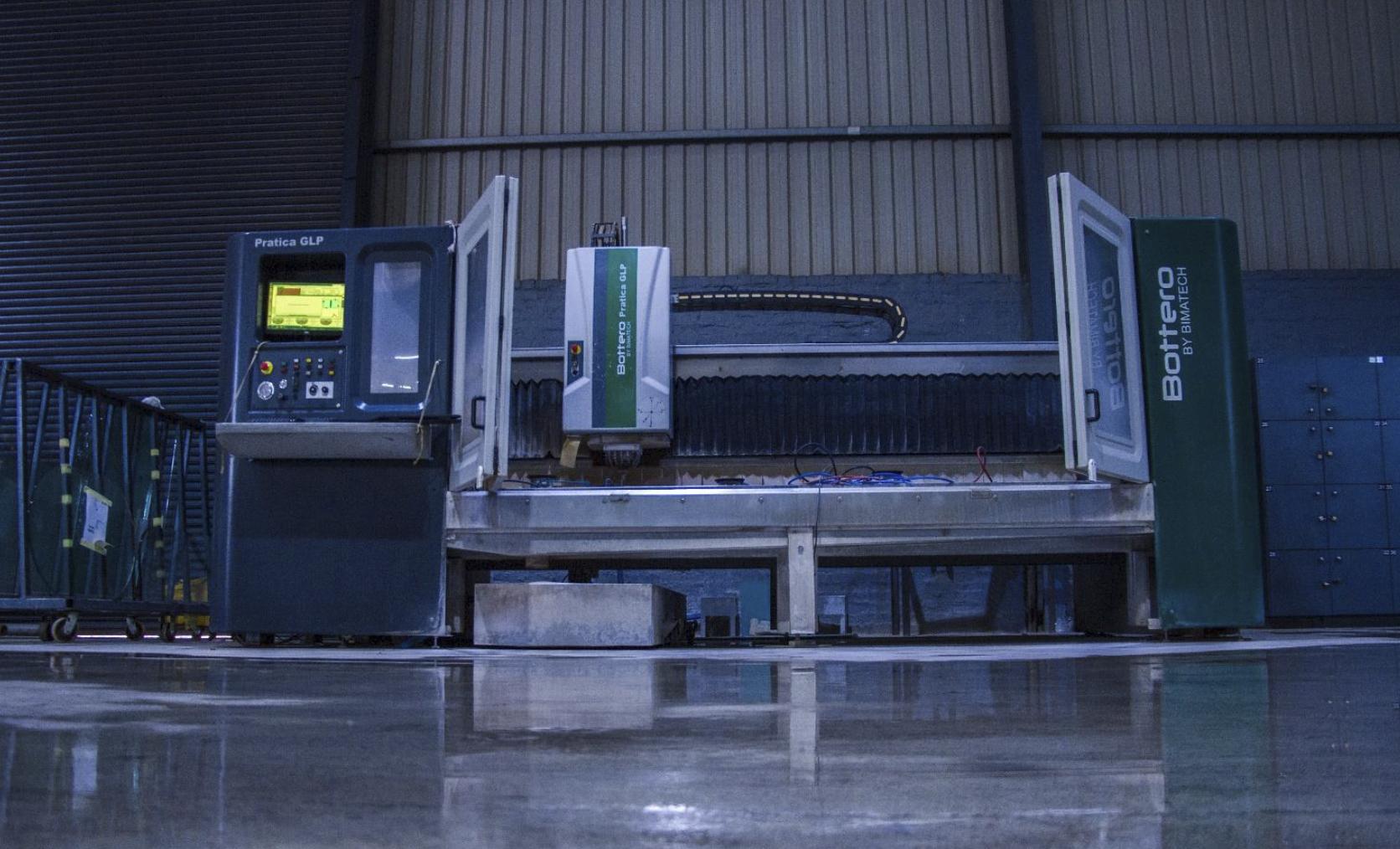

Bottero Practica Horizontal CNC Polishing, Drilling & Milling Machine

This machine is ideally used for bright polishing shaped glass with high accuracy. You can also drill and mill any centre or edge cut outs for shower doors, entrance doors and splash backs.

– Maximum Size 3200mm X 1350mm

Intermac High Pressure Waterjet CNC machine

This Intermac Horizontal Waterjet CNC machine can be used to drill and mill any shape cut out or holes into float or laminated glass. Because this machine uses extreme high pressure to cut, it can also be used to cut steel products.

– Maximum Sheet Size 4000mm X 3200mm

Various Horizontal and Vertical Glass Washing Machines.

A Glass Washing Machine, whether horizontal or vertical is crucial in any glass processing factory. Cutting, drilling and milling machines leave residue on the glass surfaces and would take quite some time to clean and dry if done manually. These washing machines convey the glass panels on rollers and are then transferred through soft brushes and water spraying nozzles, this will rinse off any residue left on the surface. The glass will then be dried by means of a heavy-duty air blower compartment leaving the glass crystal clear, clean and dry. Lighting underneath the exit rollers will assist the operator to inspect the glass panels for any defects and scratches.

– 3 X Horisontal Washing Machines

– 1 X Vertical Washing Machine

Horizontal Cross Belt Arrising Machines

The Horizontal Cross Belt Arrising Machine removes only the sharp edges of mostly square panes of glass by means of P120 or P80 Grit water resistant sanding belts. The twin belts are positioned on angles in opposite directions in order to arris the top and bottom edge of the glass simultaneously. Water is sprayed onto the belts in order to eliminate glass dust and prevent quick wear on the belts. The glass sheets move across the table to cover the whole edge. The tables have air blowing through holes from the bottom to make the glass glide effortlessly or by means of castor wheels. These machines are designed for high speed arrising of glass panels where the glass edges will not be exposed in the final application.

Horizontal Glass Drilling Machine

Horizontal Glass Drilling machines drill from the top and bottom simultaneously with precision and speed. These machines are equipped with a laser light in order to drill perfectly onto the scored premarked position from the cutting machine.
The machine cools drilling with water whilst drilling with the diamond core drill bits. A countersunk bit could also be fitted to this machine.

Pencil Edge Polishing Machine (Over Runner)

The Pencil Edge Polishing Machine (Over Runner) is used for polishing 4mm to 6mm shaped glass panes of a small to medium size mostly for the aftermarket automotive market. Its popularly use on most of our local bakkies (pick up trucks) equipped with a canopy securing goods in transit. All glass in vehicles must have toughened safety glass fitted therefore the Pencil Edge Polishing Machine will polish high volumes of glass shapes very quickly.
The round pencil edge diamond wheel is connected to a high-speed spindle with water nozzles spraying onto the wheel while running these small panes of glass edges over the wheel. A simple but effective little machine.

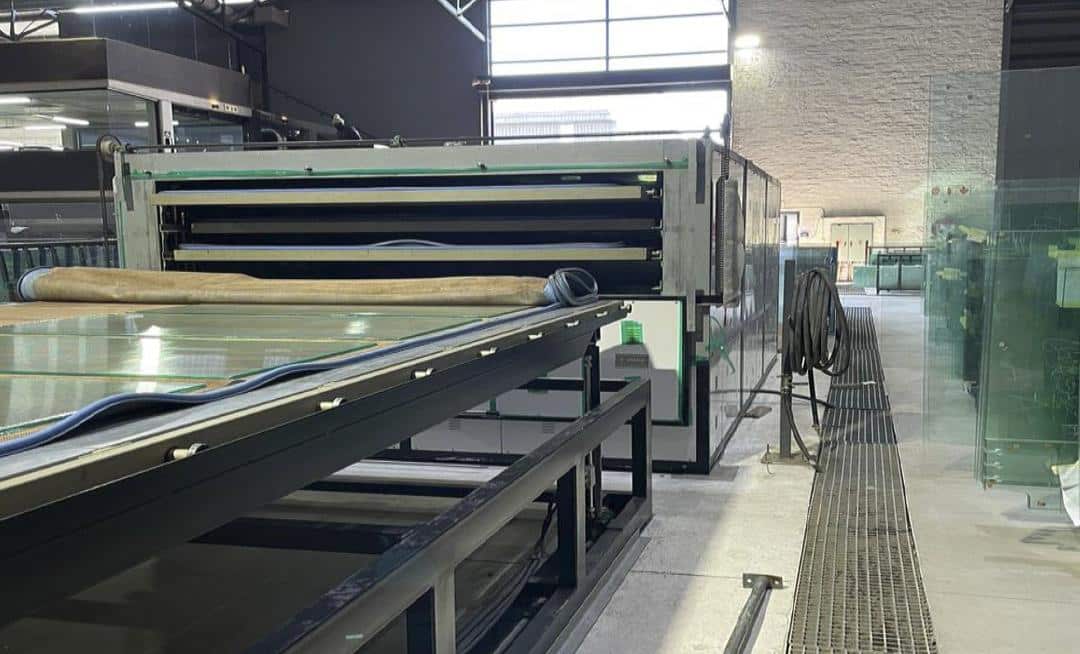

Tornati EVA Laminating Oven

More about Ethylene Vinyl Acetate (EVA)
Ethylene Vinyl Acetate (EVA) based film to produce laminated safety, security and decorative glass. The film crosslinks to form a strong durable laminate which have excellent long-term resistance to temperature, moisture and UV radiation. EVA is not moisture sensitive like Polyvinyl Butyral (PVB) EVA will not discolour or delaminate in the long term. Please contact our Sales Consultants for more information.
The Tornati LAM-VN23.45 Laminating Oven is a state-of-the-art air heated electric oven for the vacuum lamination of flat or curved toughened or annealed Safety Glass. The oven can produce high-quality laminated safety glass.

– Minimum Size 100mm X 100mm

– Maximum Size 2300mm X 4500mm

– 4 X Loading Trays

– Glass Thickness 6,38 – 200mm

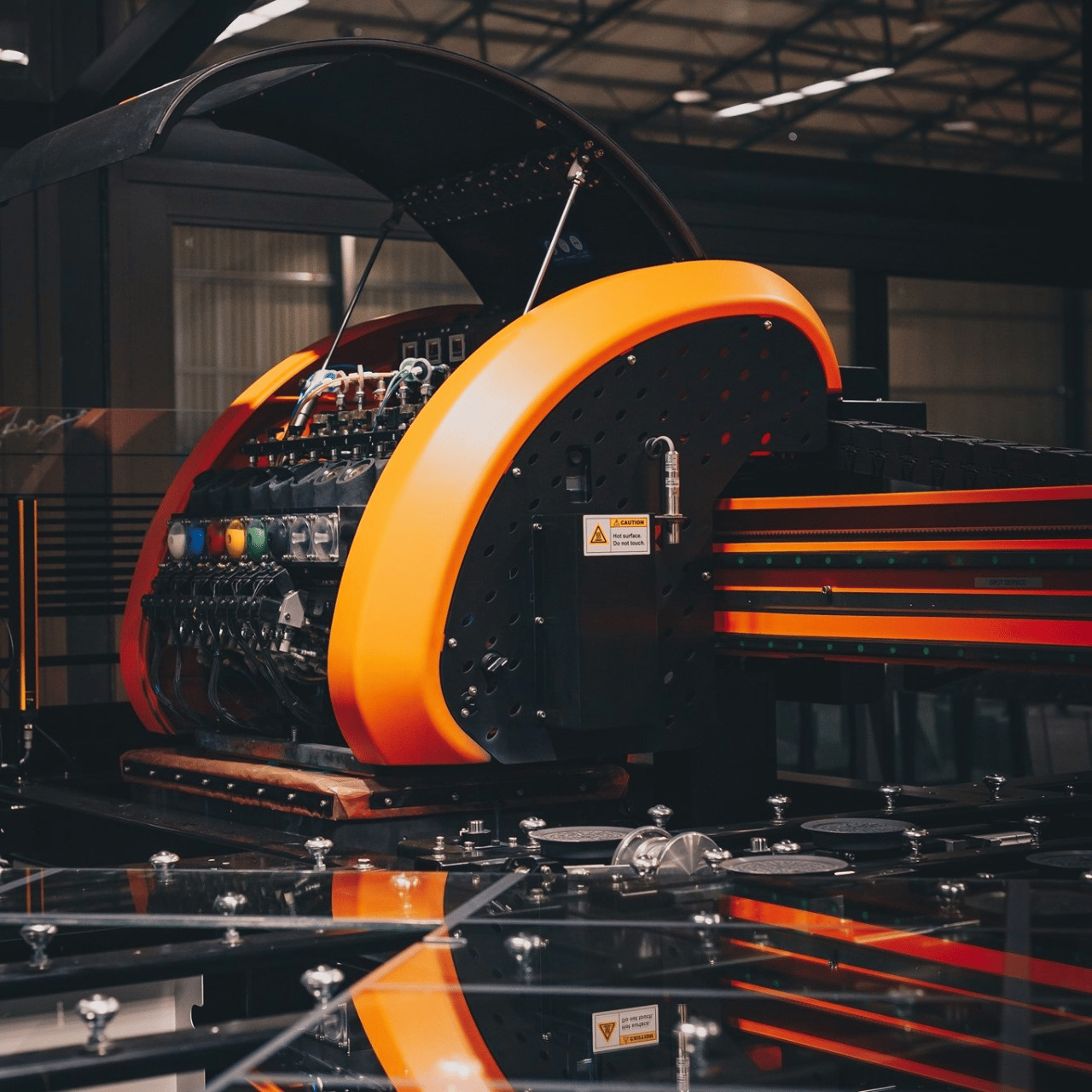

Diptech Digital Glass Printing

In the decorative world innovative Interior Decorators and Architects are constantly searching for new products to apply onto and inside architectural office buildings and homes. Glass Planet acquired a state-of-the-art Diptech Digital Printing Machine in 2020. By using ceramic paint, high- definition images, fritted patterns can be printed onto large and medium- sized glass panes. The ceramic paint is then fired onto the glass surface with the Cooltemper tempering furnace and hardened at the same time.
These panels of glass can be used for internal and external applications and will not discolour or fade in time.
Please contact our Sales Consultants for more information.

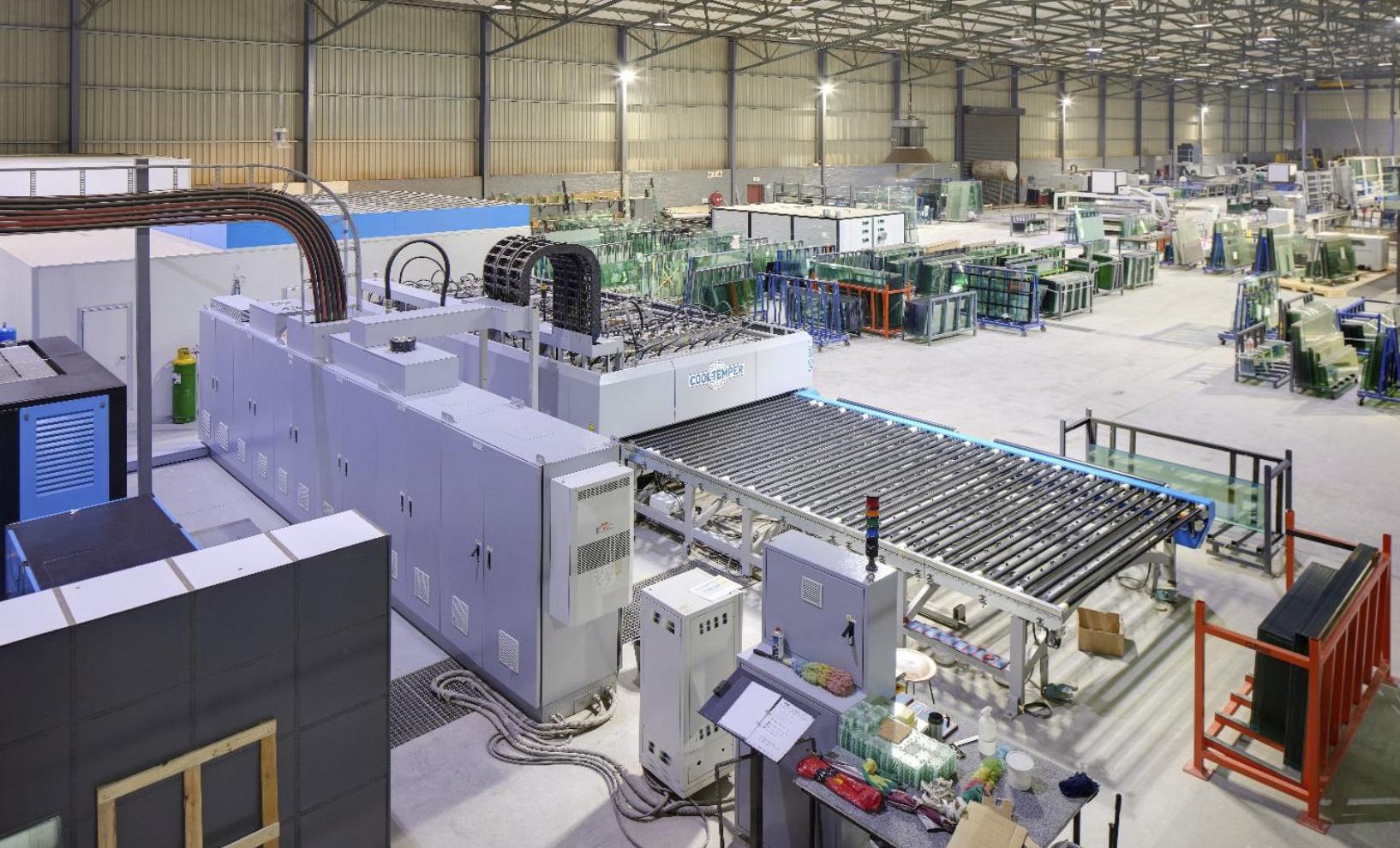

Cooltemper Jetstream RT Full Convection Toughening Furnace

This Tempering Furnace is what sets Glass Planet apart from the rest and most certainly the flag ship of Tempering Furnaces. There are currently only 3 of these specialised furnaces on the African continent. The Cooltemper Jet Stream Series is designed with volume and versatile production in mind. It offers superior glass quality, fast cycle times, extremely low running costs and very little maintenance. It is the perfect all-rounder for both large and small production facilities. A technically advanced design but simple to use and operate.

– Maximum Size Tempering 2530mm Width X 5100mm Length

– 4mm-19mm Thickness

– 4mm-12mm Thickness Heat Strengthening Option

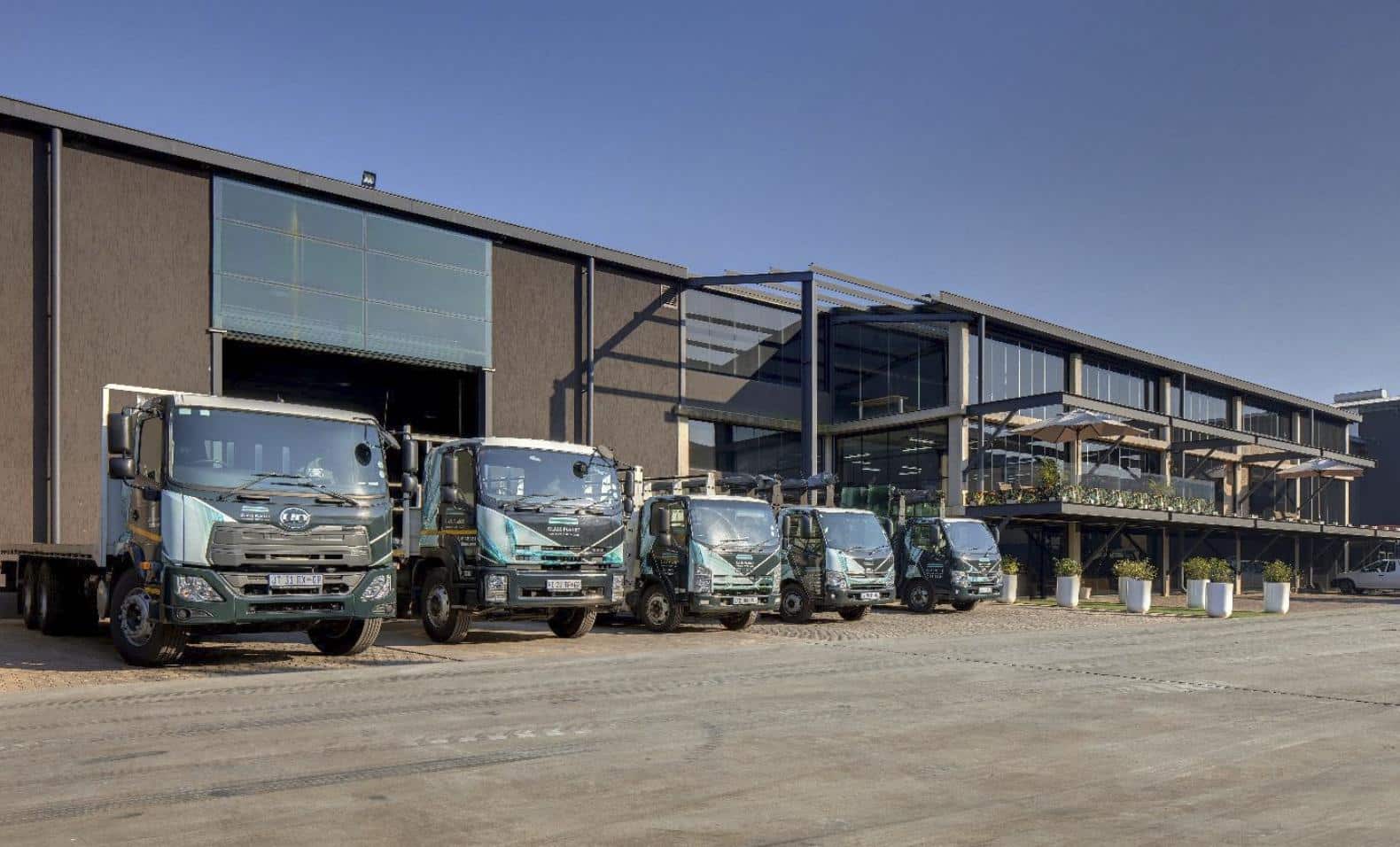

Delivery Vehicle Fleet

Glass Planet has a strong delivery vehicle fleet to make sure your products arrive on time and in excellent condition. Our team of drivers is highly trained and experienced in handling fragile items, so you can rest assured that your products will arrive safely. We also use state-of-the-art tracking technology to keep tabs on our delivery vehicles so that we can always provide up-to-date information on the status of your delivery. Glass Planet is committed to providing the best possible customer service, and our delivery services are just one way that we live up to that commitment.
